Researchers from the US and China have identified a previously unknown reaction mechanism that addresses the very short lifetimes of Li-sulfur batteries.Their paper is published in the journal Nature.

Lithium-sulfur batteries can store two to three times more energy in a given volume, resulting in longer vehicle ranges. Their lower cost, facilitated by the abundance and affordability of sulfur, makes them economically viable. Further, these batteries do not rely on critical resources such as cobalt and nickel, which may face shortages in the future.

Despite these benefits, transitioning from laboratory success to commercial viability has proven elusive. Laboratory cells have shown promising results, but when scaled up to commercial size, their performance rapidly declines with repeated charge and discharge.

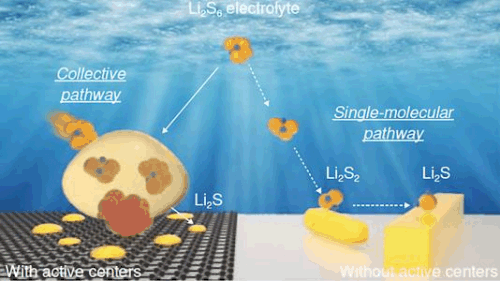

Different reaction pathways from lithium polysulfide (Li?S?) to lithium sulfide (Li?S) in lithium-sulfur batteries with (left) and without (right) catalyst in sulfur cathode. (Image by Argonne National Laboratory.)

The underlying cause of this performance decline lies in the dissolution of sulfur from the cathode during discharge, leading to the formation of soluble lithium polysulfides (Li2S6). These compounds flow into the lithium metal negative electrode (anode) during charging, further exacerbating the issue. Consequently, the loss of sulfur from the cathode and alterations in the anode composition significantly hinder the battery’s performance during cycling.

In a recent earlier study, Argonne scientists developed a catalytic material that, when added in a small amount to the sulfur cathode, essentially eliminated the sulfur loss problem. While this catalyst showed promise in both laboratory and commercial-size cells, its atomic-scale working mechanism remained an enigma until now.

The team’s most recent research shed light on this mechanism. In the absence of the catalyst, lithium polysulfides form at the cathode surface and undergo a series of reactions, ultimately converting the cathode to lithium sulfide (Li2S).

The presence of a small amount of catalyst in the cathode makes all the difference, said Gui-Liang Xu, chemist in Argonne’s Chemical Sciences and Engineering division. ?“A much different reaction pathway follows, one free of intermediate reaction steps.”

Key is the formation of dense nanoscale bubbles of lithium polysulfides on the cathode surface, which do not appear without the catalyst. These lithium polysulfides rapidly spread throughout the cathode structure during discharge and transform to lithium sulfide consisting of nanoscale crystallites. This process prevents the sulfur loss and performance decline in commercial-size cells.

Analyses of the catalyst’s structure with the intense synchrotron X-ray beams at beamline 20-BM of the Advanced Photon Source, a DOE Office of Science user facility, revealed that it plays a critical role in the reaction pathway. The catalyst structure affects the shape and composition of the final product upon discharge, as well as the intermediate products. With the catalyst, nanocrystalline lithium sulfide forms upon full discharge. Without the catalyst, microscale rod-shaped structures form instead.

Another vital technique, developed at Xiamen University in China, allowed the team to visualize the electrode-electrolyte interface at the nanoscale while a test cell was working. This newly invented technique helped connect changes at the nanoscale to the behavior of an operating cell.
