This new Flat Plate Solar Water Heater thermosyphon system is a solar compact system comprising an aluminium high power collector with an integrated 100 (200 / 300) liters tank. For easy installation, the frame is simply unfolded. However, the product is also impressive due to its aesthetic design and reliable performance: Due to improved layering of the tank, the FPS 1000 series product yield is better in comparison with other thermosyphon systems. The tank can also be fitted with an optional heating rod for fast hot water supply.

- Modular system is easy for transport and installation

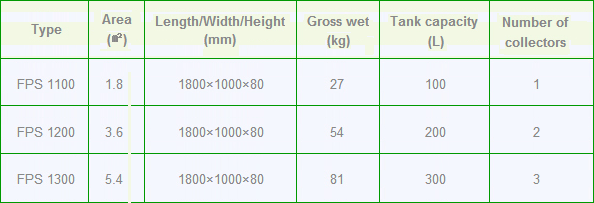

- Tank in 100,200 and 300 liter version with optimized heat insulation

- Woven toughened solar safety glass

- Qualified and recyclable materials ensure a long service life and high environmental compatibility

- Maximum heat transfer between the absorber sheet and the header tubes thanks to optimized brazing or laser welding technology

- Statically tested mounting system can be installed on flat roofs
