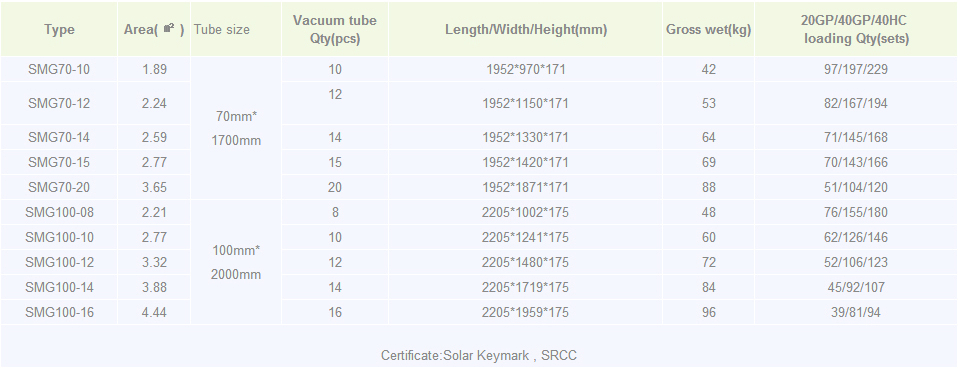

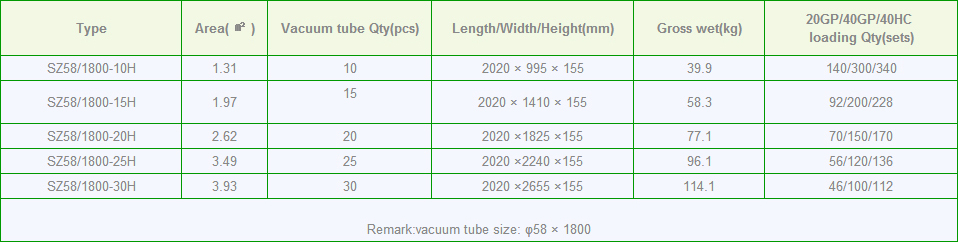

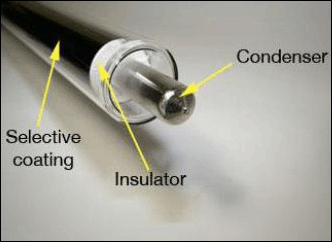

1. Heat Pipe Solar Collector

■ The collector can operate even in case of a broken tube. A single tube can be exchanged without interruption of the heating cycle

■ Water is rapidly heated by the heat pipe

■ There is no water in the vacuum tube, so the tube will not break in winter

■ Collector can be combiled with existing pipeline

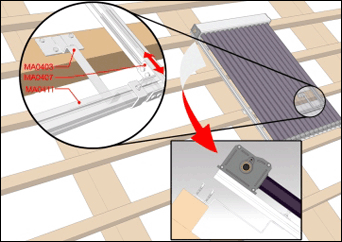

■ This model is with new manifold and the frame can be adjusted

■ Manifold header：Alnico-1.5mm

■ Frame：Alnico

■ Distance from tube to tube：78

■ Insulation thickness：40mm

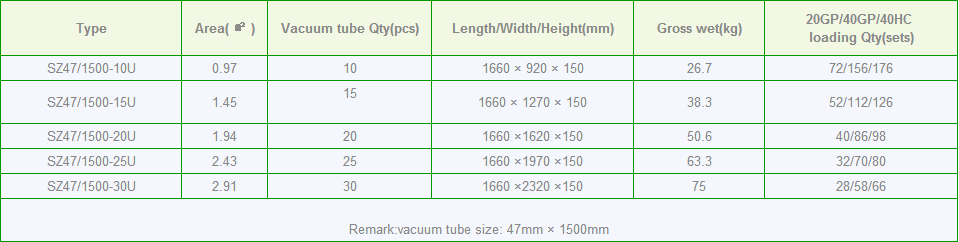

2. U-Pipe Solar Collector

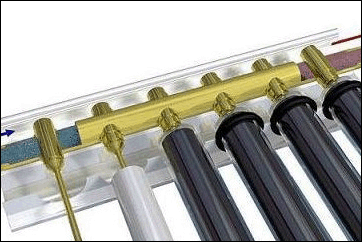

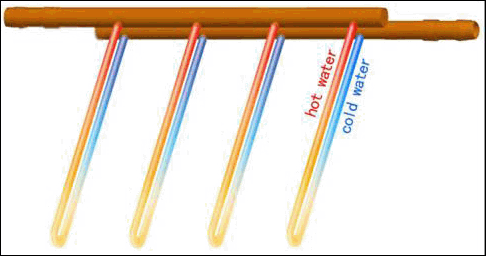

■ The vacuum tubes absorb the solar energy and transfer into the heat energy, then pass it to the U pipe, it can get high temperature.

■ Since there is no water in the tubes itself, the tubes will not break in winter.

■ The system is reliable and efficient.

■ The collector is mountable on sloped or flat roofs or on a veranda. The installation is the most flexible since it can work well in any installation angle.

■ It can be combined with an existing pipeline.

■ It can operate even if one tube breaks.

■ Distance from tube to tube (mm)：70

■ Manifold：Alnico-1.5mm

■ Upipe copper：Φ8

3. DMG Solar Collector

■ Diffuse solar radiation can be efficiently absorbed even in cloudy days

■ Virtually unaffected by wind and environment temperature

■ Gather energy from the available light rather than outside heat

■ Hot water can be provided even in cold winter

■ High performance, even in adverse weather conditions due to vacuum insulation

■ The heat-pipe technology ensures high heat transfer and low heat emission

■ Easy installation - each tube can be installed individually

■ Easy maintenance - each tube can be replaced individually

■ High durability and reliability, due to the high quality of the materials used in the manufacturing process

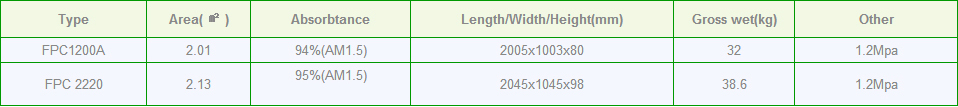

4. Flat Plate Solar Collector

■ The solar glass and the profile are covered with the PDEN rubber, which could guarantee the 100% tightness and long service life.

■ The fiber glass cotton could save the energy from losing.

■ The FPC can be used for both flat roof and the slope roof.

■ It is easy for the transportation and installation.

■ It is ideal for the large scale project because it is more economic than the evacuated tube solar collector.

■ It could guarantee high efficiency owning to the brazing and laser welding technology.

■ Using the woven ultra white toughended glass, which promise the high transmittance more than 91%. On the other hand,this glass is not easy to be broken so it is safer than the evacuated tube glass.

■ The main materials are recyclable so it is good for the environment protection.

■ Optimal value for money thanks to intelligent product design based on a minimum number of individual components.

■ Installation-friendly mounting system with bench screws for all common types of roofs.

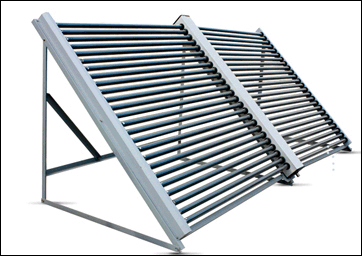

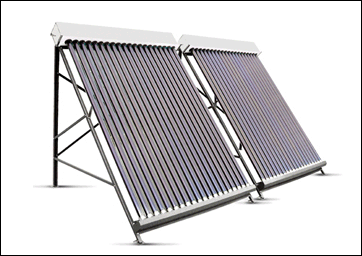

5. Non-Pressure Solar Collector

■ Applicable to solar hot water supply/ swimming pool heating/ house heating.

■ Operates automatically; telecommuting controlling.

■ All-day/time-lapse mode.

■ The design allows for versatile architectonic integration.

■ Any type of back up heating can be combined.
