	Hybrid Energy Storage Inverter (1.6/3.2/3.5/5.5kW)
		Back to Inverter list >>>
	Back to product list >>>

■ Technical Specification

Rated Power	1600VA/1600W	3200VA/3200W	3500VA/3500W	5000VA/5500W
Price	Rs.49,000	Rs.59,000	Rs.79,000	Rs.89,000
AC Input
Voltage	230VAC（220VAC/240VAC)
Selectable Voltage Range	170-280VAC（For Personal Computers）； 90-280 VAC（For Home Appliances）
Frequency Range	50/60Hz（Auto sensing）
AC Output
AC Voltage Regulation 　(Battery Mode)	230VAC ± 5%
Surge Power	3200VA	6400VA	7000VA	11000VA
Efficiency (Peak)	93%
Transfer Time	10ms(For Personal Computers); 20ms(For Home Appliances)
Wave Form	Pure sine wave
Battery
Battery Voltage	12VDC	24VDC		48VDC
Floating Charge Voltage	13.5VDC	27VDC		54VDC
Overcharge Protection	16VDC	33VDC		63VDC
Solar Charger AC Charger
Maximum PV Array Open 　Circuit Voltage	500VDC
Maximum PV Array Power	2000W	3500W	4500W	5500W
MPPT Range Operating Voltage	60～450VDC		60～450VDC
Maximum Solar Charge Current	80A		100A
Maximum AC Charge Current	60A		80A
Maximum Charge Current	80A		100A
General Parameters
Operation Temperature	-10°C to 50°C
Relative humidity	5% to 95% Relatve Humidity (Non-condensing)
Dimensions D×W×H(mm)	348×270×95		400×300×115
Net Weight(KG)	5	5.5	8.5	9
Display and Communication
Communicaton Interface	Standard: USB/RS232; Optional: CAN&RS485
Safety standard	EN/IEC62109-1, EN/IEC62109-2

■ Features

- MPPT

　Pure sine wave MPPT solar inverter

　Bulit-in 80/100A MPPT solar charger

- Battery

　Battery equalization function extend life cycle

　Reserved communication port (RS485, CAN) for BMS

- OFF-Grid

　REVO VM II PRO series is suitable for off-grid applications.

- Easy access

　High PV input voltage range with touch buttons

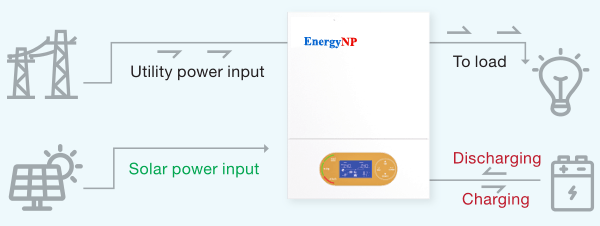

■ With battery connected

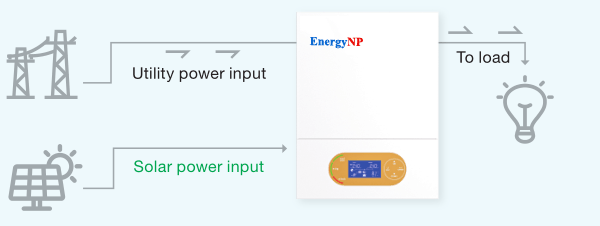

■ Without battery connected

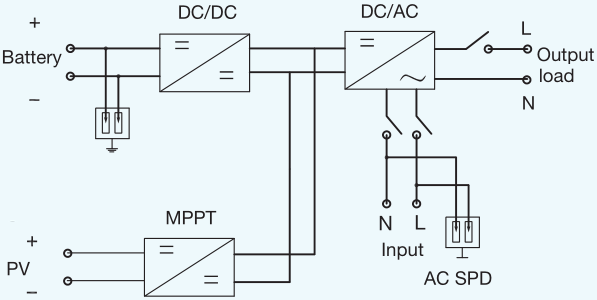

■ Schematic diagram
