	Hybrid On-Grid & Off-Grid Energy Storage Solar Inverter
		Back to Inverter list >>>
	Back to product list >>>

■ Technical Specificaaon

Rated Power	4000VA/4000W	6000VA/6000W
Price	Rs. 110,000	Rs. 142,000
AC Input
AC Voltage	230VAC
Voltage Range	170～280 VAC (For Personal Computers); 90～280 VAC (For Home Appliances)
Frequency Range	50Hz/60 Hz (Auto sensing)
AC Output
Surge power	8000VA	12000VA
Voltage regulaton (Baaery Mode)	230VAC±5%
Rated frequency	50/60Hz
Efficiency (Peak)	up to 93.5%
Transfer Time	10ms (For Personal Computers); 20ms (For Home Appliances)
Battery
Batery voltage	24VDC	48VDC
Floatng Charge voltage	27VDC	54VDC
Overcharge Protecton	33VDC	63VDC
Batery type	Lithium /Lead-acid
Solar Charger & AC Charger
Maximum PV Array Open voltage(V)	500VDC
Maximum PV Array power	5000W	6000W
MPPT voltage range(V)	60～450VDC
Maximum input current	27A
MPPT tracker/strings	1
Maximum solar charge current	120A
Maximum AC charge current	100A
Maximum charge current	120A
Protection & Feature
AC overcurrent	Yes
AC overvoltage	Yes
Over temperature protecton	Yes
Smart load management	Yes
On Grid	Yes
General Paramter
Operaton temperature	0°C～50°C
Relatve humidity	0～95% (non-condensing)
Alttude	>2,000m Deratng
Dimensions D×W×H (mm)	434×311×126.5
Net Weight (KG)	8.5	9
Display and Communication
Display	Touch butons
Interface	Standard: RS232, CAN&RS485; Optonal: WiFi, Bluetooth
Safety standard	EN/IEC 62109-1, EN/IEC 62109-2

■ Features

- Max PV input current 27A

Designed with 27A PV input current compatble to the market trend of increased Imp of solar panel

- Easy access

Two outputs for smart load management The second output can be scheduled on& off based on set ng point of babery transfer to uolity

- Batery

Batery equalizaaon funcnon extend lifecycle Reserved communicaton port (RS485,CAN) for BMS

- Protect

Built-in ant-dust kit for harsh environment AC overcurrent,AC overvoltage,over temperature protecton

- On-Grid and Off-Grid

REVO HM series is suitable for on-grid and off-grid applicaaons

- Interface

Global cloud platorm mobile APP anyyme and anywhere open APP , support power internet applicatons

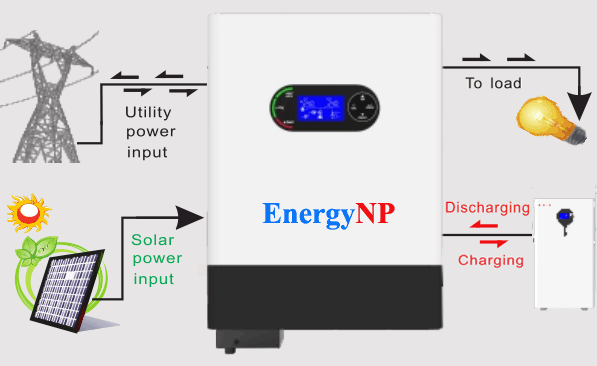

With batery connected

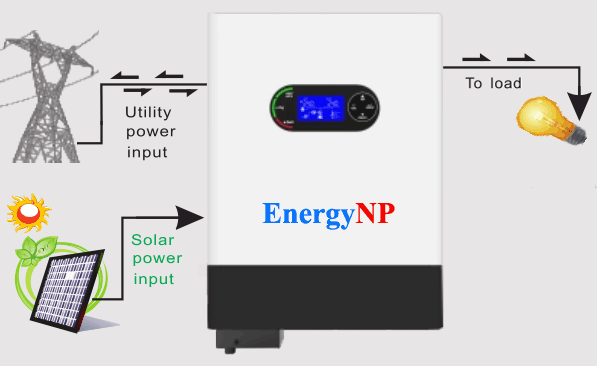

Without batery connected
