Operating Principle:

The solar panel receives the solar energy and the wind turbine receives the wind energy. The electricity produced by wind energy and solar energy charges the batteries at the bottom of tower through the micro-computer controller.

Wind energy and solar energy are transferred as electric power to be stored in the batteries. After sundown, the controller is on automatically and supplies the electric power stored in the batteries to the LED lamp. The switching on and off of the LED lamp are also done automatically by the controller.

Components:

- Solar panels

- 400W wind turbine

- Battery bank

- Lamp pole

- Controller

- LED lamp

Features:

1. Energy saving and emission reduction:

Wind-solar hybrid street light neither consumes conventional energies nor releases carbon dioxide. It is extremely environmental friendly.

2. Economizing and environmental protection:

Wind-solar hybrid street light uses clean energy sources, which produce no pollution or radiation.

3. Stable system:

Wind-solar hybrid street light system works independently, so it is not subject to massive blackout.

4. Strong adaptability:

No bound by seasons and weather, wind-solar hybrid street light can achieve the uninterruptible power supply all the year round.

5. Long service life:

The working lifespan of wind-solar hybrid street light system reaches up to over 15 years.

Applications:

Wind-solar hybrid street light system can be widely applied to Suburban Roads, Factory Illumination, Landscape Road, Park, Living Community, Parking lot, Plaza, Tourist area, Remote Roads and highway, etc.

Specification:

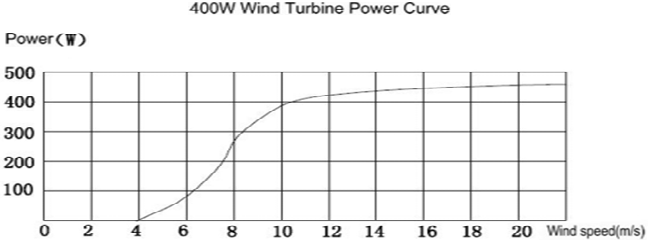

Output Power Curve:

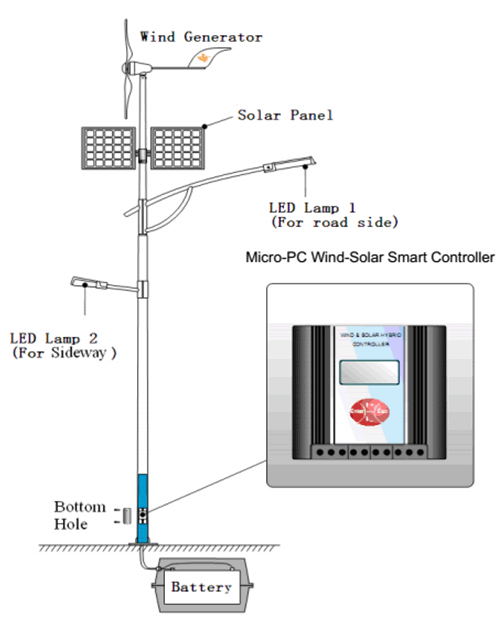

System Diagram as Below:
