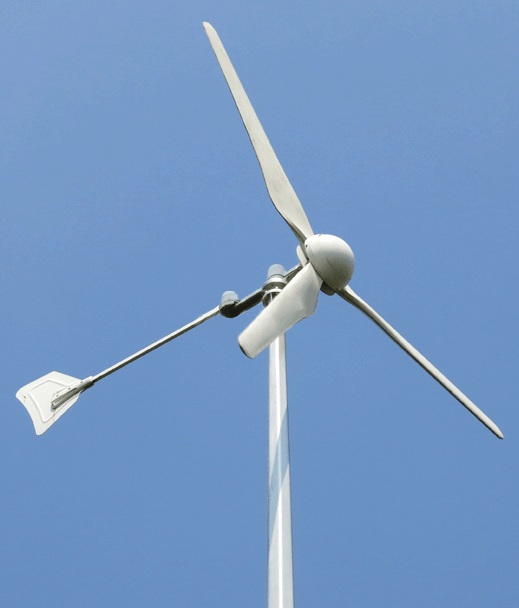

	1KW Wind Power Turbine
	Back to Wind Power list >>>
	Back to product list >>>

1kw wind turbine can be off-grid and on-grid system, the generator is direct-drive permanent magnet 3-phase generator. It looks for wind rely on tail rod.

Wind Power Turbine - Nepal - Kathmandu - energyNP.com

Specification:

Configuration	3Blades,Horizontal axis,Upwind
Rotor Diameter	3.2m
Blade Length	1.55m
Swept Area	8.04m2
Direction of Rotation	Clockwise(facing blades)
Blade Material	Fiberglass reinforced composite
Rated Power	10m/s
Direct Voltage	60V,DC
Direct Current	16.67A,DC
Start-up Wind Speed	3m/s
Rated Rotating Rate	500r/min
Working Wind Speed	3-25m/s
Survival Wind Speed	50m/s
Alternator	Permanent magent alternator,SCF technology
Gearbox	None,Direct drive generator design
Energy monitoring & User control	LED display
Generator Efficiency	>0.80
Alternator Weight	22kg
Dogvane/Anemometer	None
Over Speed Protection	Auto Yawing(Aerodynamics)
Shutting Down Method	Manual & Automatic electromagnetism Braking

Wind Power Turbine - Nepal - Kathmandu - energyNP.com

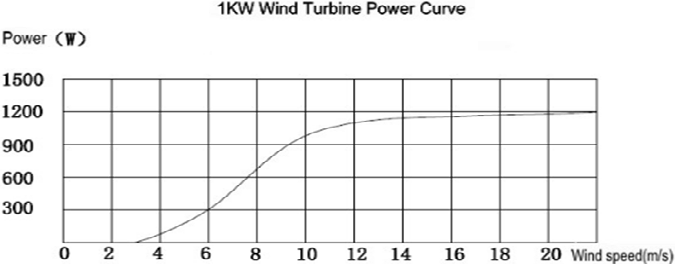

Output Power Curve:

Wind Power Turbine - Nepal - Kathmandu - energyNP.com
