Wind Turbine Permenant mangent motor - Nepal - Kathmandu - energyNP.com

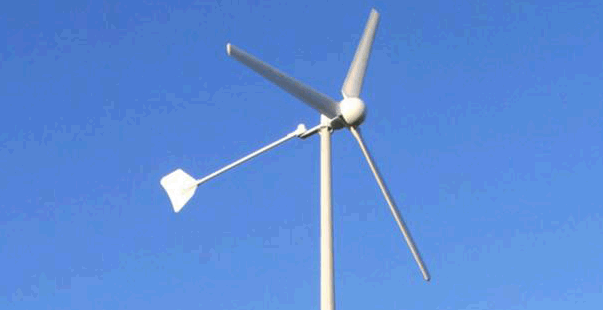

 2KW Wind Turbine Permenant mangent motor



2kw wind turbine can be off-grid and on-grid system, the generator is direct-drive permanent magnet 3-phase generator. It looks for wind rely on tail rod.


Wind Turbine Permenant mangent motor - Nepal - Kathmandu - energyNP.com



Specification:


　Configuration 　3Blades,Horizontal axis,Upwind
　Rotor Diameter 　3.8m
　Blade Length 　1.835m
　Swept Area 　11.34m2
　Direction of Rotation 　Clockwise(facing blades)
　Blade Material 　Fiberglass reinforced composite
　Rated Power 　10m/s
　Direct Voltage 　120V,DC
　Direct Current 　16.67A,DC
　Start-up Wind Speed 　3m/s
　Rated Rotating Rate 　450r/min
　Working Wind Speed 　3-25m/s
　Survival Wind Speed 　50m/s
　Alternator 　Permanent magent alternator,SCF technology
　Wind Energy Utilizing Ratio 　0.45 Cp
　Gearbox 　None,Direct drive generator design
　Energy monitoring & User control 　LED display
　Generator Efficiency 　>0.80
　Alternator Weight 　31kg
　Dogvane/Anemometer 　None
　Over Speed Protection 　Auto Yawing(Aerodynamics)
　Shutting Down Method 　Manual & Automatic electromagnetism Braking



Wind Turbine Permenant mangent motor - Nepal - Kathmandu - energyNP.com

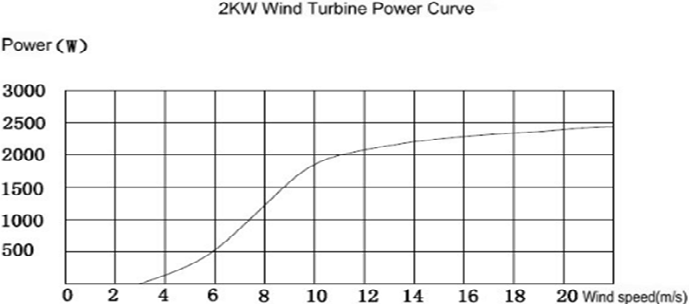

Output Power Curve:

Wind Turbine Permenant mangent motor - Nepal - Kathmandu - energyNP.com



Wind Turbine Permenant mangent motor - Nepal - Kathmandu - energyNP.com
