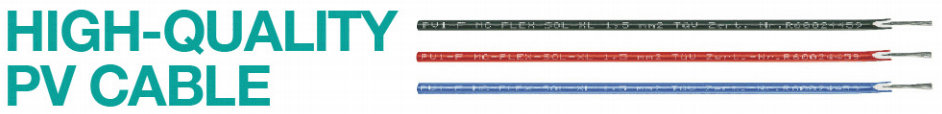

Single-pole, double insulated solar cable with fine-wire tinned copper strands. The robust, flexible and space-saving design of ensures constant electrical and mechanical properties during the whole life of the PV installation.

For the insulation of our cables we use a chemically cross-linked compound. This exhibits complete and controlled in-depth cross-linking throughout the thickness of the cable sheath.

Cross-linking by chemical means results in a high overall process reliability and reproducibility and material homogeneity to which cables owe their outstanding mechanical and thermal characteristics: high mechanical strength, high temperature resistance and Flexibility under cold conditions.

Our cables are also flame retardant, halogen-free, RoHS-conform and with particularly low smoke emission in case of fire.

Typical application

Use in the low-voltage field for heavy-duty outdoor wiring. In combination with the plug connector system for photovoltaics(PV):

Assembly of connecting leads for time-saving cabling of PV modules.
