- 36×5 Mono Series (75Wp-100Wp)

　　　　XH75M(36) / XH80M(36) / XH85M(36) / XH90M(36) / XH95M(36) / XH100M(36)

　　　　- 36×6 Monoseries (130Wp-155Wp)

　　　　XH130M(36) / XH135M(36) / XH140M(36) / XH145M(36) / XH150M(36) / XH155M(36)

■ Typical Electrical Characteristics

　- Note

　The specifications are obtained under the Standard Test Condition(STC)：

　1,000W/㎡， Am1.5， Cell Temperature 25℃

36×5 Mono Series (75Wp-100Wp)

36×6 Monoseries (130Wp-155Wp)

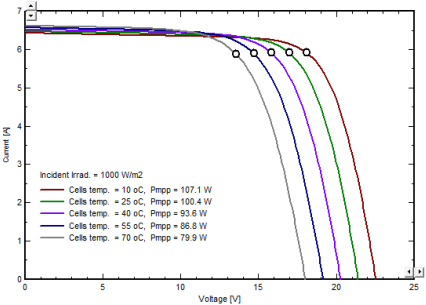

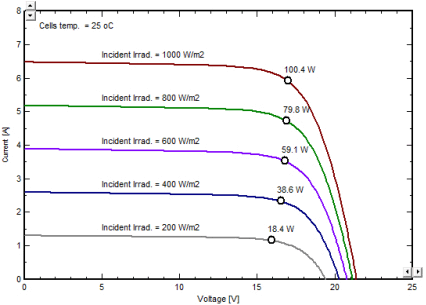

-V CURVE：36×5 Mono Series (75Wp-100Wp)

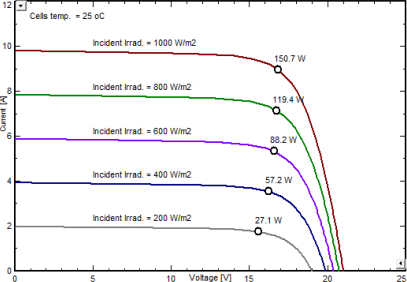

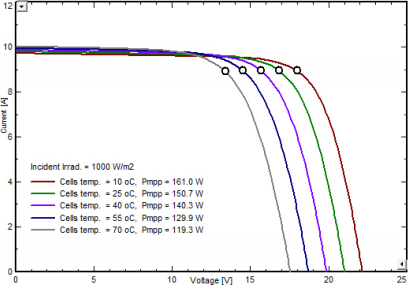

-V CURVE：36×6 Monoseries (130Wp-155Wp)

■ Certification

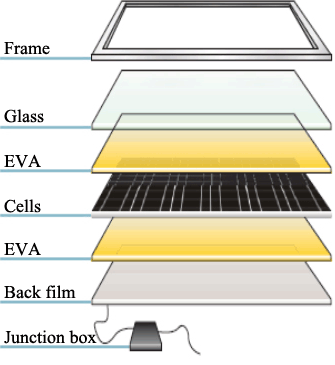

■ The Structure of Solar Modules

- Cell

The hi-efficiency of mono and poly solar cells ensure adequate power for panels.

- Glass

Low-iron tempered glass,3.2mm thickness with higher reflectivity.

- EVA

Higher transmission rate,antioxidant capacity and temperature resistance,no expansion or contraction.

- Back film

Increase efficiency of modules slightly and reduce module's temperature.Aging resistance,corrosion resistance and airtight.

- Aluminum Frame

Using the framework of the anodized aluminum frame with high intensity, mechanical shock resistance capacity.

■ Warranty

10-year repair and workmanship warranty

12-year warranty at 90% power output

25-year warranty at 80% power output

■ Functional Features

- Applies to commercial, residential applications for on-grid and off-grid applications.

- Produced with strict quality control standards and a worldwide certification program.

- Easily installed on the ground, roof, building face or tracking system.

- Reduces electricity cost and creates energy independently.

- Modular, no moving parts, fully scalable and easily installed.

- Reliable and virtually maintenance-free power generation.

- Helps environment by reducing air, water and land pollution.

- Provides clean, quiet and reliable electricity generation.
