Poly Crystal Solar Panel - Solar Energy - Nepal - Kathmandu - energyNP.com

Poly Crystal Solar Panel 48pcs

(156poly 165w¡«195w/185w¡«200w)

¡¡¡¡¡¡¡¡¡¡




¡¡¡¡¡¡¡¡- 48pcs 156poly Series (165w¡«195w)

¡¡¡¡¡¡¡¡XH170P(48) / XH175P(48) / XH180P(48) / XH185P(48) / XH190P(48) / XH195P(48)

¡¡¡¡¡¡¡¡- 48pcs 156poly Series (185w¡«200w)

¡¡¡¡¡¡¡¡XH185P(48) / XH190P(48) / XH195P(48) / XH200P(48)



¡¡Solar Cell ¡¡Poly-crystalline 156¡Á156mm¡¡
¡¡Power Tolerance (Pmax) ¡¡0¡«+3%
¡¡Numbers of cells ¡¡48pcs of cells in series
¡¡Module Dimension ¡¡1335¡Á990¡Á35mm
¡¡Weight ¡¡15.8kg
¡¡Max. System Voltage ¡¡1000V DC
¡¡Max. Series Fuse Rating ¡¡12A
¡¡Temperature cycling range ¡¡-40¡æ¡«+85¡æ
¡¡NOTC ¡¡47¡æ
¡¡Temperature coefficients of Isc ¡¡(+0.06% /¡æ )
¡¡Temperature coefficients of Voc ¡¡(-0.35% /¡æ )
¡¡Temperature coefficients of Pmax¡¡ ¡¡(-0.4% /¡æ )
¡¡Load Capacity ¡¡320pcs /20'GP
¡¡670pcs /40'HQ





¡ö Typical Electrical Characteristics



¡¡Models
XH170
P(54)
XH175
P(54)
XH180
P(54)
XH185
P(54)
XH190
P(54)
XH195
P(54)
XH185
P(48)
XH190
P(48)
XH195
P(48)
XH200
P(48)
¡¡Max. Power (Pmax)
170Wp
175Wp
180Wp
185Wp
190Wp
195Wp
185Wp
190Wp
195Wp
200Wp
¡¡Optimum Operating Voltage
¡¡(Vm)¡¡
22.9V
23.2V
23.4V
23.5V
23.6V
23.8V
23.7V
23.8V
23.9V
24.1V
¡¡Optimum Operating Current
¡¡(Im)
7.43A
7.55A
7.69A
7.87A
8.05A
8.19A
7.81A
7.98A
8.04A
8.29A
¡¡Open-circuit Voltage (Voc)
28.9V
29.1V
29.4V
29.4V
29.6V
29.8V
29.1V
29.2V
29.3V
29.4V
¡¡Short-circuit Current (Isc)
7.78A
7.95A
8.12A
8.31A
8.48A
8.65A
8.61A
8.79A
8.81A
8.85A
¡¡Cells efficiency
14.6%
15%
15.5%
15.9%
16.3%
16.7%
16.6%
16.8%
17.2%
17.4%



¡¡Note

¡¡The specifications are obtained under the Standard Test Condition(STC)£º

¡¡1,000W/©O£¬ Am1.5£¬ Cell Temperature 25¡æ

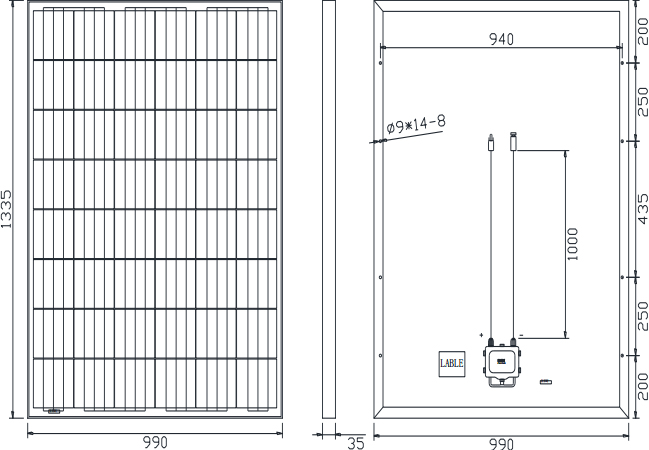

48pcs 156poly Series (165w¡«195w)

Poly Crystal Solar Panel - Solar Energy - Nepal - Kathmandu - energyNP.com

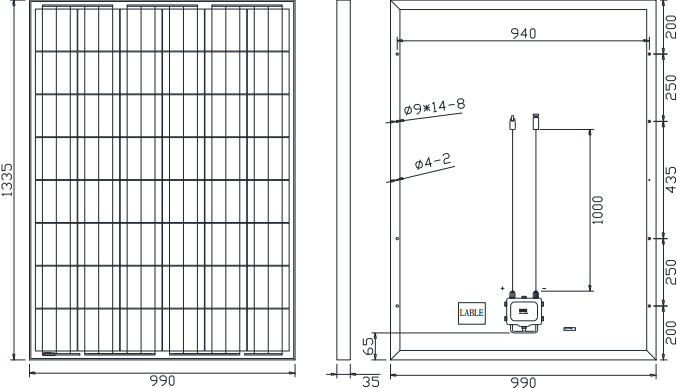

48pcs 156poly Series (185w¡«200w)

Poly Crystal Solar Panel - Solar Energy - Nepal - Kathmandu - energyNP.com

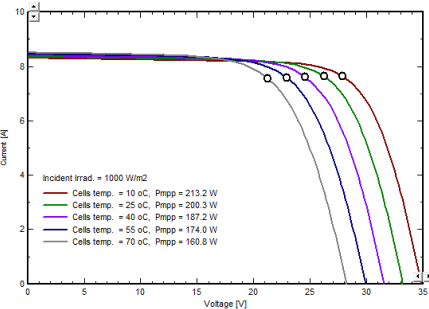

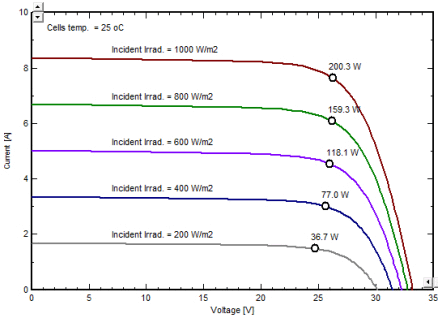

-V CURVE£º48pcs 156poly Series (165w¡«195w)

Poly Crystal Solar Panel - Solar Energy - Nepal - Kathmandu - energyNP.com

Poly Crystal Solar Panel - Solar Energy - Nepal - Kathmandu - energyNP.com

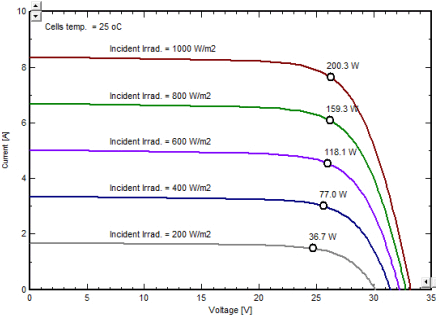

-V CURVE£º48pcs 156poly Series (185w¡«200w)

Poly Crystal Solar Panel - Solar Energy - Nepal - Kathmandu - energyNP.com

Poly Crystal Solar Panel - Solar Energy - Nepal - Kathmandu - energyNP.com





¡ö Certification



Poly Crystal Solar Panel - Solar Energy - Nepal - Kathmandu - energyNP.com





¡ö The Structure of Solar Modules

- Cell

The hi-efficiency of mono and poly solar cells ensure adequate power for panels.

- Glass

Low-iron tempered glass,3.2mm thickness with higher reflectivity.

- EVA

Higher transmission rate,antioxidant capacity and temperature resistance,no expansion or contraction.

- Back film

Increase efficiency of modules slightly and reduce module's temperature.Aging resistance,corrosion resistance and airtight.

- Aluminum Frame

Using the framework of the anodized aluminum frame with high intensity, mechanical shock resistance capacity.



Poly Crystal Solar Panel - Solar Energy - Nepal - Kathmandu - energyNP.com



¡ö Warranty

10-year repair and workmanship warranty

12-year warranty at 90% power output

25-year warranty at 80% power output
