- 60pcs 156poly Series (220w～245w)

　　　　XH220P(60) / XH225P(60) / XH230P(60) / XH235P(60) / XH240P(60) / XH245P(60)

　　　　- 60pcs 156poly Series (240w～255w)

　　　　XH240P(60) / XH245P(60) / XH250P(60) / XH255P(60)

■ Typical Electrical Characteristics

　Note

　The specifications are obtained under the Standard Test Condition(STC)：

　1,000W/㎡， Am1.5， Cell Temperature 25℃

60pcs 156poly Series (220w～245w)

60pcs 156poly Series (240w～255w)

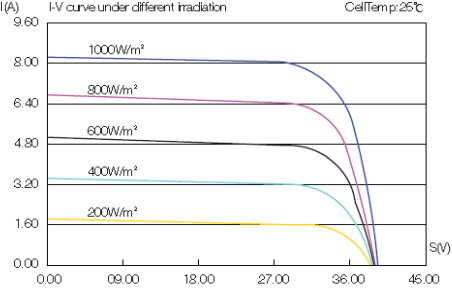

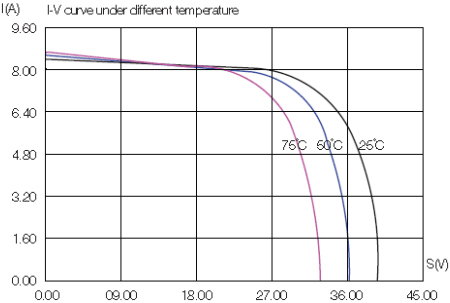

-V CURVE：60pcs 156poly Series (220w～245w)

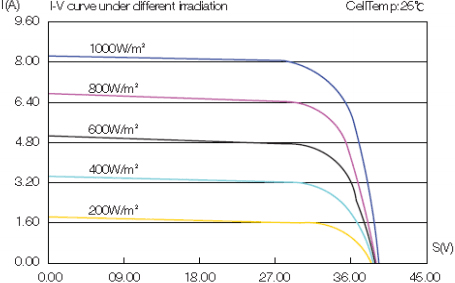

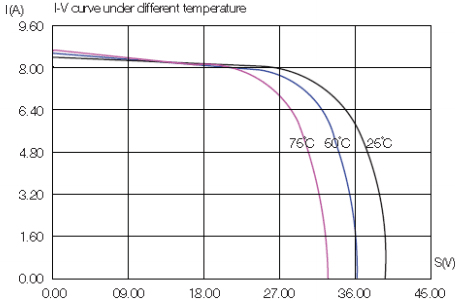

-V CURVE：60pcs 156poly Series (240w～255w)

■ Certification

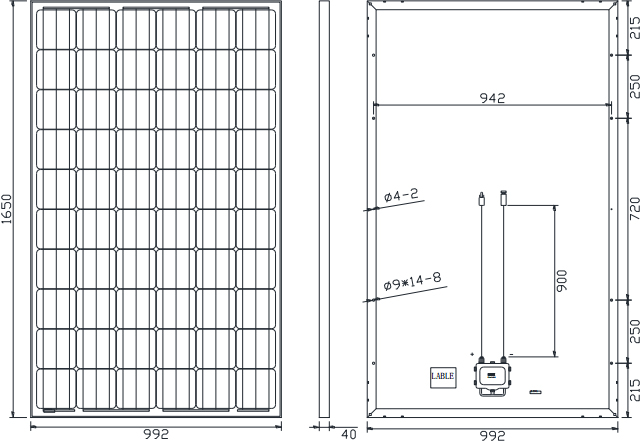

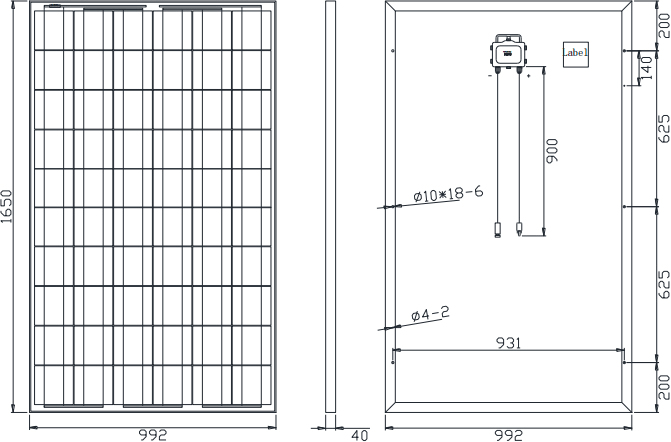

■ The Structure of Solar Modules

- Cell

The hi-efficiency of mono and poly solar cells ensure adequate power for panels.

- Glass

Low-iron tempered glass,3.2mm thickness with higher reflectivity.

- EVA

Higher transmission rate,antioxidant capacity and temperature resistance,no expansion or contraction.

- Back film

Increase efficiency of modules slightly and reduce module's temperature.Aging resistance,corrosion resistance and airtight.

- Aluminum Frame

Using the framework of the anodized aluminum frame with high intensity, mechanical shock resistance capacity.

■ Warranty

10-year repair and workmanship warranty

12-year warranty at 90% power output

25-year warranty at 80% power output
