　　　　- 72pcs 156poly Series (250w～290w)

　　　　XH270P(72) / XH275P(72) / XH280P(72) / XH285P(72) / XH290P(72) / XH295P(72)

　　　　- 72pcs 156poly Series (285w～300w)

　　　　XH285P(72) / XH290P(72) / XH295P(72) / XH300P(72)

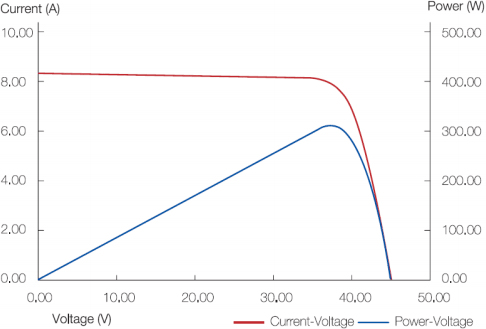

■ Typical Electrical Characteristics

　Note

　The specifications are obtained under the Standard Test Condition(STC)：

　1,000W/㎡， Am1.5， Cell Temperature 25℃

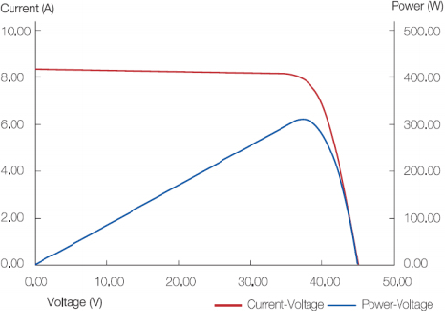

72pcs 156poly Series (285w～300w)

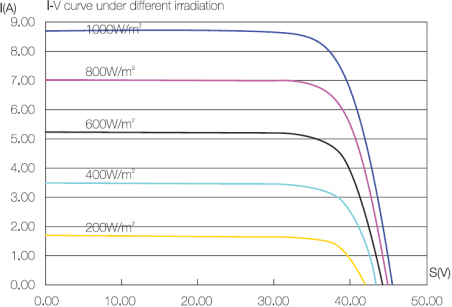

-V CURVE：72pcs 156poly Series (250w～290w)

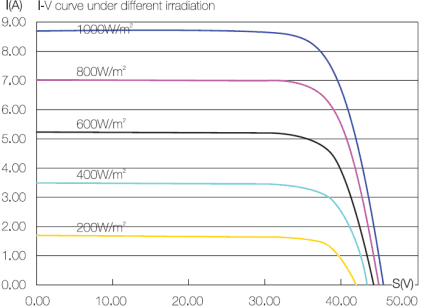

-V CURVE：72pcs 156poly Series (285w～300w)

■ Certification

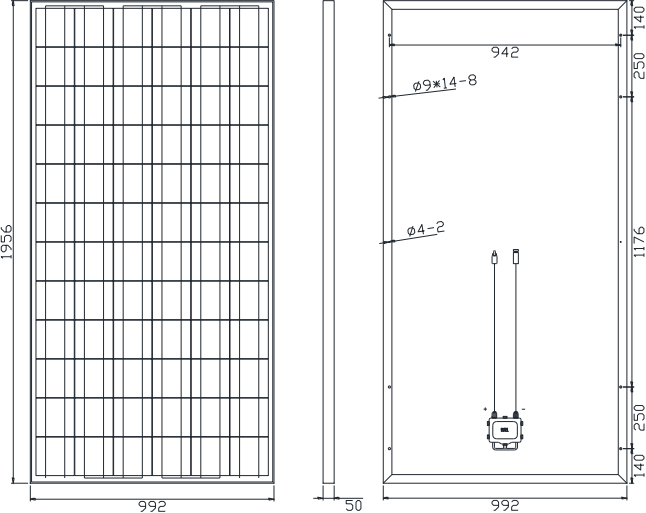

■ The Structure of Solar Modules

- Cell

The hi-efficiency of mono and poly solar cells ensure adequate power for panels.

- Glass

Low-iron tempered glass,3.2mm thickness with higher reflectivity.

- EVA

Higher transmission rate,antioxidant capacity and temperature resistance,no expansion or contraction.

- Back film

Increase efficiency of modules slightly and reduce module's temperature.Aging resistance,corrosion resistance and airtight.

- Aluminum Frame

Using the framework of the anodized aluminum frame with high intensity, mechanical shock resistance capacity.

■ Warranty

10-year repair and workmanship warranty

12-year warranty at 90% power output

25-year warranty at 80% power output
