	Auxiliary devices series
		Back to Electric Power Tools list >>>
	Back to product list >>>

■

Wire net sleeve connector

(Wire mesh sleeve)

Rs 3,900　(50～90mm)

Rs 5,100　(120～150mm)

Rs 5,000　(150～240mm)

Wire net sleeve connector Wire mesh sleeve - Auxiliary devices - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Rated load(KN)	Suitable wire(mm)	Weight (kg)
Rated load(KN)	Suitable wire(mm)	Single head	Double head
15	LGJ50～90	0.5	1
20	LGJ120～150	0.6	1
25	LGJ185～240	0.8	1.3

　Usage：Put the line and tight line connection and hold various aluminum wire, steel core aluminum stranded wire, through all kinds of line tackle.

■

Cable net sleeve connector

(Cable net cover)

Rs 5,100　(Φ40)

Rs 6,000　(Φ50)

Rs 7,500　(Φ60)

Rs 8,100　(Φ80)

Cable net sleeve connector Cable net cover - Auxiliary devices - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Rated load(KN)	Suitable cable(mm)	Weight(Kg)
20	Φ50～Φ60	1.4
20	Φ70～Φ85	1.55

　Usage：For power cable, communication cable traction installation.

■

Rotary connector

Rs 1,600　(10KN)

Rs 2,400　(30KN)

Rs 3,200　(50KN)

Rotary connector - Auxiliary devices - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Rated load(KN)	Main size(mm)					Weight(Kg)
Rated load(KN)	A	B	C	D	E	Weight(Kg)
10	30	100	70	12	13	0.4
30	37	129	95	16	16	0.65
50	42	154	116	18	17	1.5

■

Anti-Bending connector

(Bending connector)

Rs 1,000　(10KN)

Rs 1,300　(30KN)

Rs 3,200　(50KN)

Anti Bending connector Bending connector - Auxiliary devices - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Rated load(KN)	Main size(mm)					Weight(Kg)
Rated load(KN)	A	B	C	D	E	Weight(Kg)
10	36	68	18	14	29	0.2
30	37	76	20	17	31	0.22
50	50	96	23	19	42	0.6

　Usage：Applicable to all kinds of wire rope on line connection, through a variety of pulleys.

■

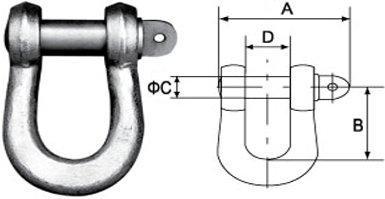

High strength shackle

Rs 600　(20KN)

Rs 800　(30KN)

Rs 1,100　(50KN)

High strength shackle - Auxiliary devices - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Rated load(KN)	Main size(mm)				Weight(Kg)
Rated load(KN)	A	B	C	D	Weight(Kg)
20	67	58	16	24	0.29
30	97	82	20	34	0.8
50	107	89	22	38	1.12

　Usage：Loading and unloading of steel wire ropes and objects.

■

Mechanical cable drum stand

(Column type cable support)

Rs 30,700

Mechanical cable drum stand Column type cable support - Auxiliary devices - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Height adjustment range(mm)	Rated load(KN)	Type	Weight(Kg)
700～1050	30	Column type	52
450～900	30	Frame type	68

　Usage：For line construction in the extension of the wire when the wire is supported, lifting height can be adjusted properly.

■

Hydraulic cable drum stand

(Hydraulic type cable support)

Rs 76,200

Hydraulic cable drum stand cable support - Auxiliary devices - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Applicable cable drum (mm)			Weight(Kg)
diameter	width	Shaft hole diameter	Weight(Kg)
≤Φ2400	≤Φ1600	≤Φ76-103	172

　Usage：Suitable for supporting cable drum.

　Feature：Hydraulic lifting, a foot ferry, easy to move.

　Remarks：Can be customized according to customer requirements.

■

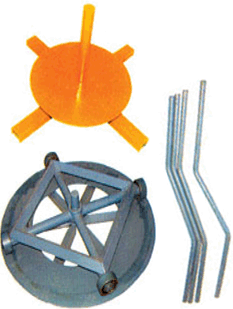

Simple lying type cable drum stand

(Horizontal type cable support)

Rs 33,600　(30KN)

Rs 35,800　(50KN)

Simple lying type cable drum stand Horizontal type cable support - Auxiliary devices - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Rated load(KN)	Suitable drum diameter(mm)	Weight(Kg)
30	≤Φ800	63
50	≤Φ1000	92

　Usage：For line construction to support the drum to put the cable.

■

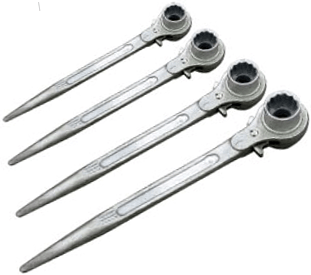

Ratchet wrench

Rs 1,500 (300mm)

Usage：For tightening the bolt, it has the characteristics of high speed and large torque.

Ratchet wrench - Auxiliary devices - Electric Power Tools - Machinery of Power - Nepal Kathmandu
