	Crimp series
		Back to Electric Power Tools list >>>
	Back to product list >>>

■

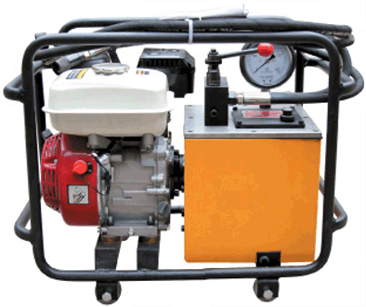

Super high pressure hydraulic pump

(Single-stage pump output)

Rs. 259,000

Super high pressure hydraulic pump - Crimp - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Engine	Power	Rated Output (Mpa)	Max Output Pressure (Mpa)	Rated Flow (L/min)		Weight (kg)
Engine	Power	Rated Output (Mpa)	Max Output Pressure (Mpa)	High Pressure	Low Pressure	Weight (kg)
Gasoline	5.0HP	80	94	1.6	-	55
Diesel	4.0HP	80	94	1.6	-	65
Electric	2.2KW	80	94	1.6	-	65

It works with hydraulic crimping pliers.

■

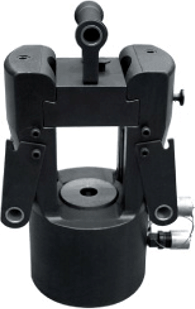

Hydraulic clamp

Hydraulic crimping pliers

Rs. 109,000

Hydraulic clamp Hydraulic crimping pliers - Crimp - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Max Output Force(KN)	Rated Pressure(Mpa)	Piston Stroke(mm)	Out dia of Crimpng pipe(mm)	Weight(Kg)
1250	80	25	Φ14～Φ60	40

■

Hydraulic crimping pliers

Split hydraulic clamp

Rs. 55,000

Hydraulic clamp Hydraulic crimping pliers - Crimp - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Output Force(KN)	Crimping Range(m㎡)	Piston Stroke(mm)	Crimping type(mm)	Weight(Kg)
300	Cu 50-630		Hexagonal	19

■

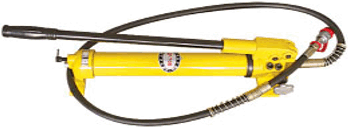

Manual hydraulic pump

Rs. 19,000

Manual hydraulic pump - Crimp - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Output Pressure(Mpa)	Oil Capacity(cc)	Size(mm)	Weight(Kg)
700	900	510×140×150	16

■

Manual hydraulic pliers

Rs. 19,000

Manual hydraulic pliers - Crimp - Electric Power Tools - Machinery of Power - Nepal Kathmandu
