	Pulley series
		Back to Electric Power Tools list >>>
	Back to product list >>>

■

The up hook type dual-purpose stringing pulley

Rs 4,900　(120*60)

Rs 3,900　(80*50)

The up hook type dual-purpose stringing pulley - Pulley - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Suitable wire(LJ-LGJ)	Rated Load(KN)	Diameter *Width(mm)	Weight (kg)
Suitable wire(LJ-LGJ)	Rated Load(KN)	Diameter *Width(mm)	Aluminum	Nylon
25-185	5	Φ80×50	1.9	1.8
35-240	20	Φ120×60	3.4	3.2

　Usage: Both can be used as suspension type and up hook type

■

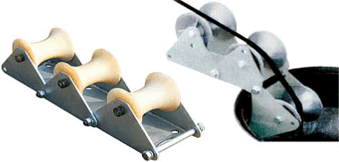

Triple wellhead pulley

Rs. 14,900

Triple wellhead pulley - Pulley - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Maximum diameter of the cable(mm)	Weight(Kg)
Φ100	12

　Remarks：For a cable or cable tray laying in the ground

　Feature：1. For straight and angle　2.Can be split into 3 pulleys

■

Orifice cable protection pulley

Rs 7,700　(Φ 90)

Rs 8,800　(Φ130)

Rs 9,900　(Φ150)

Orifice cable protection pulley - Pulley - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Diameter of orifice	Weight(Kg)
90	4.9
130	6.3
150	7.6

　Remarks：For a small section of the cable bending radian is not big

■

Tube type cable pulley

Rs 5,600　(Nylon)

Tube type cable pulley - Pulley - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Rated load(KN)	Diameter of cable(mm)	Weight(Kg)
5	Φ160	5.7

■

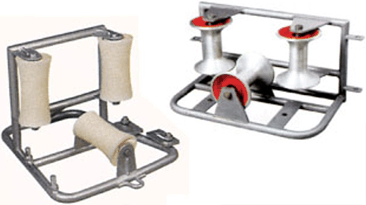

Corner Cable pulley

(Turning angle cable pulley)

Rs 12,300

Corner Cable pulley Turning angle cable pulley - Pulley - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Rated load(KN)	Diameter of cable(mm)		Weight(Kg)
10	Φ120	Nylon	9.2

■

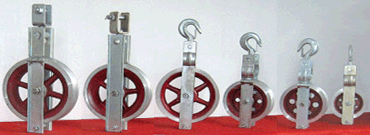

Small diameter Stringing pulley

Rs 3,900

Small diameter Stringing pulley - Pulley - Electric Power Tools - Machinery of Power - Nepal Kathmandu

	Number of Wheels	Rated load(KN)	External diameter(mm)	Width of wheel(mm)	Weight(Kg)
Φ200*40	150～240	15	200	40	3.6

　Usage：For in a straight line tower laying wire, wire rope clamp connector and connector, rotary connector can pass from the groove.

　Remarks：This product divides the hook type, hanging type, ring type, please note, special specifications can be customized.

■

Lifting pulleys (Cast steel wheel)

Rs 4,900　(2*1 2T Single wheel)
Rs 5,100　(2*2 2T Double wheels)
Rs 6,000　(3*1 3T Single wheel)
Rs 6,200　(3*2 3T Double wheels)
Rs 6,500　(3*3 3T Triple wheels)
Rs 9,900　(5*1 5T Single wheel)
Rs10,300　(5*2 5T double wheels)

Lifting pulleys Cast steel wheel - Pulley - Electric Power Tools - Machinery of Power - Nepal Kathmandu

		Number of wheel	Rated load(KN)	Suitable wire(mm)	Weight(Kg)
2*1	2T	Single wheel	20	Φ11.0	4.7
2*2	2T	Double wheels	20	Φ7.7	5.3
3*1	3T	Single wheel	30	Φ12.5	6.5
3*2	3T	Double wheels	30	Φ11.0	7.8
3*3	3T	Triple wheels	30	Φ7.7	10.5
5*1	5T	Single wheel	50	Φ15.5	9.0
5*2	5T	Double wheels	50	Φ12.5	10.8

　Usage：Suitable for power line construction, the tower stood in line, lifting equipment and other overweight operation

　Remarks：Please note the need to open and close, hook type, ring type
