Magnesium alloy manual chain hoist

(Magnesium alloy hand hoist)

Rs 29,900　(0.75T)

Rs 41,500　(1.5T)

Rs 57,500　(3T)

Magnesium alloy manual chain hoist Magnesium alloy hand hoist - Tense - Electric Power Tools - Machinery of Power - Nepal Kathmandu

	Working ability (KN)	Test load (KN)	Diameter of chian (mm)	Contraction length (mm)	Telescopic length (mm)	Lift(mm)	Handle length (mm)	Weight (Kg)	Every increase in the height of the 1m should increase the weight(Kg)
0.75T	7.5	11.3	5	300	1800	1500	230	4.0	0.55
1.5T	15	22.5	5	350	1850	1500	230	5.0	1.10
3T	30	45	6	350	1850	1500	430	8.5	0.70

　Usage：Applicable to the tight line, line construction and other work to adjust the radian, pull;

　Equipment installation in power, shipbuilding, transportation, construction, mining, posts and telecommunications and other departments;

　Lifting for small weight;Mechanical traction and so on, especially in small workplaces, field, high-altitude operations and a variety of different angles of traction has more unique advantages

　Feature：Main body is made of high strength aluminum alloy material, chain using special high strength alloy steel material, in design and use is convenient and safe and reliable; reasonable structure, beautiful shape; maintenance is simple, durable; hand pulling force is small, high work efficiency; volume small, weight light, carrying convenient characteristics

■

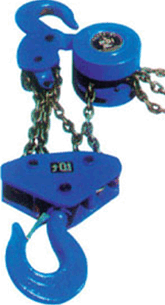

Hand chain hoist

Rs 14,500　(1T×3m)

Rs 17,300　(2T×3m)

Rs 24,300　(3T×3m)

Marks：

The chain can be extended to 9m

Hand chain hoist - Tense - Electric Power Tools - Machinery of Power - Nepal Kathmandu

■

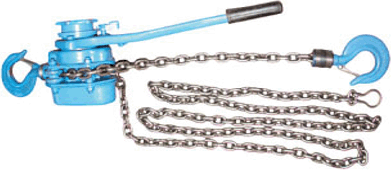

Hand hoist

Rs 14,400　(0.75T×1.5m)

Rs 16,100　(1.5T×1.5m)

Rs 24,500　(3T×1.5m)

Hand hoist - Tense - Electric Power Tools - Machinery of Power - Nepal Kathmandu

■

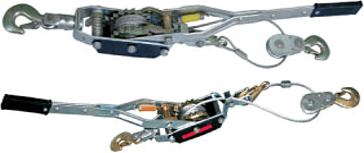

Ratchet wrench tackle block

(Ratchet wrench gourd)

Rs 5,800　(1.0m)

Rs 6,900　(1.5m)

Ratchet wrench tackle block Ratchet wrench gourd - Tense - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Rated load(KN)	Chain length(m)	Weight(Kg)
10	1.0	3.5
15	1.5	7.0

　Usage：For line construction to tighten the steel strand, aluminum wire and other operations, the free length is 1m

■

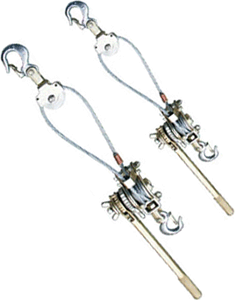

Tension wire winding device

Rs 8,300　(10KN)

Rs 10,300　(15KN)

Tension wire winding device - Tense - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Rated load(KN)	Gear teeth number	Weight(Kg)
10	-	3.2
15	-	3.5

　Usage：Fit with the wire clamping device, and put tight wire.

　Feature：The friction type structure is adopted, and the rotation is flexible and reliable.

■

Ratchet wire winding device

(Equipped with wire rope)

Rs 4,300

Ratchet wire winding device - Tense - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Number of ratchet	Hanging type	Weight(Kg)
20	Pin type	2.2
20	Hook type	2.3

　Usage：Work in with wire clamping device to tighten the wire

■

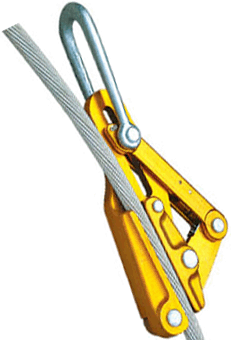

Aluminium alloy wire come along clamp

(Aluminum alloy wire line card)

Rs 8,300　(25-70)

Rs 9,600　(95-120)

Rs 10,900　(150-240)

Aluminum alloy wire line card Aluminium alloy wire come along clamp - Tense - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Aplication wire rope(GJ)	Rated load(KN)	Maximum opening distance(mm)	Weight(Kg)
25-70	10	14	1.05
95-120	15	18	1.40
150-240	25	24	2.90

　Usage：Suitable for adjusting cable tower and ground wire cable flexibly

■

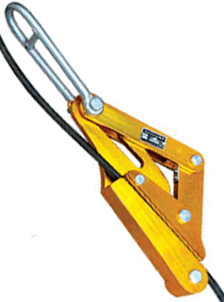

Aluminum alloy insulated wire come along clamp

(Aluminum alloy insulated wire line card)

Rs 10,500　(25-70)

Rs 11,900　(95-120)

Rs 16,200　(150-240)

Aluminum alloy insulated wire come along clamp Aluminum alloy insulated wire line card - Tense - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Aplication wire rope(GJ)	Rated load(KN)	Outer diameter of cable	Weight(Kg)
25-70	10	Φ12.8-Φ17.8	1.55
95-120	15	Φ19.6-Φ 21	2.40
150-240	25	Φ22.6-Φ26.4	3.60

　Usage：Suitable for overhead power lines to adjust the sag, tension insulated wire

　Feature：High strength, light weight, no damage to the wire

■

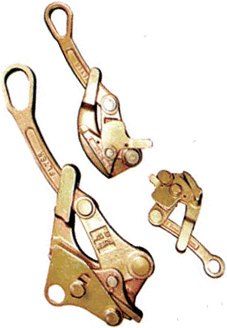

Multi-function come along clamp

(Universal card line device)

Rs 12,900　(2T)

Rs 17,200　(3T)

Multi-function come along clamp Universal card line device - Tense - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Aplication wire rope(GJ)	Rated load(KN)	Maximum opening distance(mm)	Weight(Kg)
4-22	20	22	-
16-32	30	32	-

■

Single wheel earth wire come along clamp

(Single peach wire line card)

Rs 4,800　(2T 3-14)

Single wheel earth wire come along clamp Single peach wire line card - Tense - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Aplication wire rope(GJ)	Rated load(KN)	Maximum opening distance(mm)	Weight(Kg)
50-70	20	16	1.7

　Usage：Suitable for adjusting cable tower and ground wire cable flexibly

■

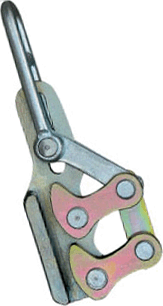

Double wheel earth wire come along clamp

(Aluminum alloy wire line card)

Rs 3,900　(25-50)

Rs 5,500　(50-70)

Double wheel earth wire come along clamp Aluminum alloy wire line card - Tense - Electric Power Tools - Machinery of Power - Nepal Kathmandu

Aplication wire rope(GJ)	Rated load(KN)	Maximum opening distance(mm)	Weight(Kg)
25-50	10	11	1.9
50-70	20	13	2.4

　Usage：Suitable for adjusting cable tower and ground wire cable flexibly
