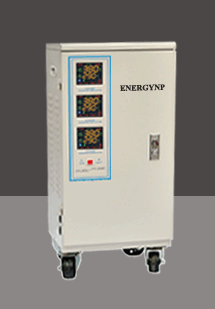

Three Phase Voltage Stabilizer

(10 KVA～45 KVA)

Back to Voltage Stabilizer list >>>　　　

Back to product list >>>　　　

- 10 KVA　Rs. 50,000

- 15 KVA　Rs. 75,000

- 20 KVA　Rs. 100,000

- 30 KVA　Rs. 150,000

- 45 KVA　Rs. 225,000

■ Product Information

　Model

　10 KVA

　15 KVA

　20 KVA

　30 KVA

　45 KVA

　Technology

　Servo Motor Control System+Micro computer programed control

　Display

　LCD

　Info

　Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/
　Protection

　Protection

Over Voltage	Output voltage ≥450v±4V
Low Voltage	Output voltage ≤325V±4V
Over Loading	More than 120%
Over Temperture	120℃±10℃
Delay time	Short time (5 second)
Circuit Beaker	Regulator / Bypass

　Language

　English

　Input Voltage

　AC270V～450V

　Output Voltage

　380V±3% adjustable

　Frequency

　50Hz

　Phase

　Three Phases

　Efficiency

　≥95%

　Ambient Temperature

　-15℃～45℃

　Waveform distortion

　No additional wave form distortion

　Insulating Resistance

　Normally more than 2MΩ

　Specifications

　Power

　10 KVA

　15 KVA

　20 KVA

　30 KVA

　45 KVA

　Packing Size (cm)

　45×45×90

　50.5×50.5×10

　59×60.5×115

　75×65.5×132

　Packing (pcs)

　G.M

　65KG

　80KG

　90KG

　115KG

　185KG

■ Product Description

Three Phase series voltage stabilizer has the low energy consumption,the over voltage protection,the low voltage protection,the over-current protection,the over-loading protection,the over-temperature protection and so on.It boasts for many kinds of protections,the collection energy conservation and the environmental protection ect.This is a brand-new concept product which possess many new technologies!This series products simultaneously ha applied for many technical monopolies.

1. Quick Details

　 - Phase: Three Phase

　 - Current Type: AC

　 - Type: Servo Motor

　 - Display: DIGTIAL

　 - Frequency: 50Hz

　 - Efficiency: ≥90%

　 - Relative Humidity: <95%

　 - Ambient Temperature: -15℃～45℃

　 - Output voltage: 380V+/-3% adjustable

2. Service Occasions

　 - Computer

　 - Test equipment

　 - Lighting equipment

　 - Alarm and security system

　 - X-ray equipment

　 - Medical equipment

　 - Duplicator

　 - Broadcasting equipment

　 - Numeric control machine tool

　 - Industrial robot

　 - Photographic processing equipment

　 - Laboratory instrument

　 - Hi-Fi equipment
