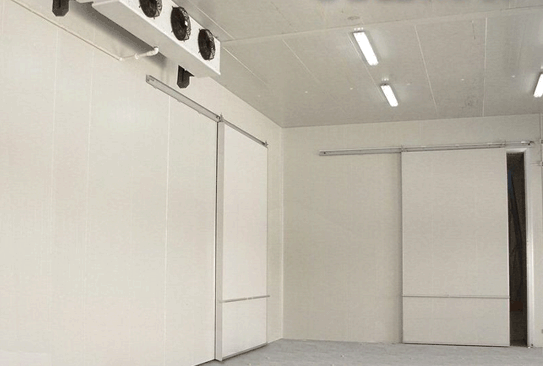

■ Cold storage room

As the leading supplier of ice making machine in Asia, we owns several patent technology in core parts, which help the ice making system achieve optimal cooling speed at minimal energy consumption.

■ Function of Cold Storage

As the location for processing and storing products, Cold Storage is a warehouse with suitable moisture and low temperature conditions by using cooling equipments. Cold Storage can cast off the climate effects and prolong the storage time of all kinds of products, so as to adjust the market provision. Cold Storage is used for constant temperature storage for meat (meat, fish, chicken, beef, pork and mutton etc), produce like fruit, vegetable, flower, potato, mushroom etc and drink product (beer, milk).

■ Application Field

- Keep fruits, vegetables and eggs fresh

- Applicable to supermarket,big farm and grand hotel

- Advanced assemle methods

■ Technical Characteristics

- Features of Cold Storage

　Temperature range: -40℃～20℃

　Size can be customized

　It has function of fresh-keeping, freezing, quick-freezing

　Fully automatic control system

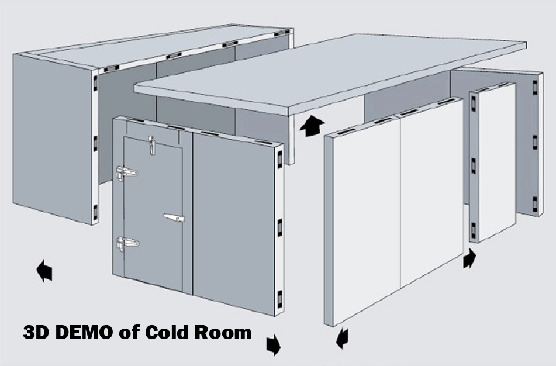

－ Features Of Combined Cold Room

　Panel: Polyurethane insulation foamed by high pressure, density above 43kg/CBM

　Economical & practical panel thickness: 50mm/75mm/100mm/150mm for choicing

　Panel material options: Knurling alumium/cold steel/stainless steel

　Steel sheet: Painted galvanized steel

　Door: Convex door/hinge door/sliding door available

　Compressor: Maneurop/ Bizter/ Hanbell/ Copeland

　Size: Customized

■ Specifications

- Multiple Options on Panel Material

　Cold steel panel: Firm coat surface optional colors

　Stainless steel panel: Clear and sanitary, firm and durable

　Knurling aluminum panel: Surface basso-relievo, beautiful and elegant

- Panel Operating Temp

　50mm: 5℃ or above

　75mm: -5℃ or above

　100mm: -25℃ or above

　150mm: -45℃ or above

　200mm: -55℃ or above

　Standard regulated cooler/freezer panels

- Specification of polyurethane material

　Heat conduction coefficient 0℃: 0.018K/Cal

　Average density: 40～50Kg/CBM

　Bearable pressure: 1.6Kg/㎡
