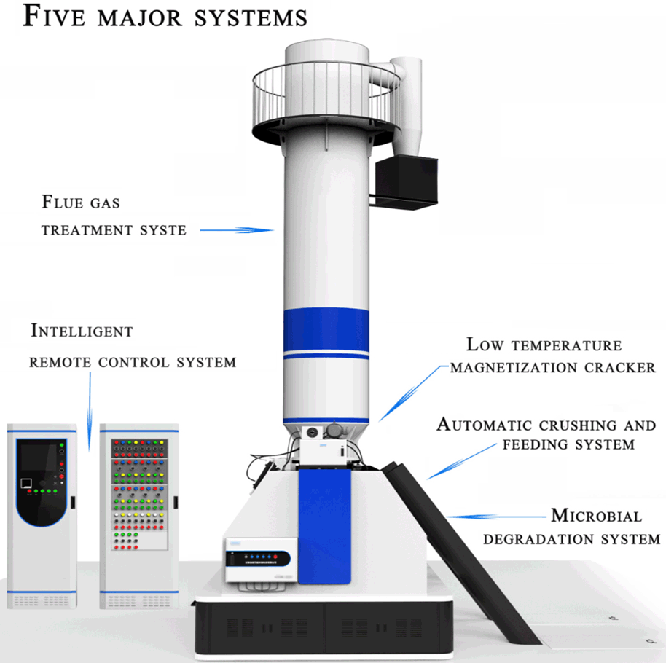

■ Equipment composition

- Automatic crushing and feeding system

- Low temperature magnetization cracker

- Flue gas treatment system

- Microbial degradation system

- Intelligent remote control system

■ Specifications ( 5T garbage disposal station )

- Equipments area: 10.24 ㎡

- Site area: 150 ㎡

- Design processing capacity: 5 tons/day

- Total annual processing: 1825 tons

- Power consumption: 3600 degrees/month

- Water Consumption: 2 tons / month

- Building period: 90 days

- Service life: 15 years

- Site workers: 2 people rotation

■ Equipment advantages

- Small investment

Only 1/3 of the traditional equipment, the operating cost is only the traditional equipment 1/5

- Low cost

No other energy consumption for normal operation, only a small amount of electricity and water

- Automation

Self-developed intelligent system, simple operation, staff can be post training through simple training.

- Localization

The equipment covers a small area and is flexible, and can be set in place according to local population distribution characteristics.

Waste disposal stations and source processing successfully solved the problems of high transportation costs and serious secondary pollution.

- Reduction

After the equipment is degraded, the volume is only 1/100 to 1/200 of the original volume, 24 hours of continuous operation, garbage disposal in place, reduction rate of 95% or more, garbage utilization of 100%, really achieve the purpose of reduction.

- Harmless

Utilizing low temperature magnetized anaerobic pyrolysis technology, no dioxin, waste gas, heavy metal hazards, Smokeless and odorless during normal operation, all indicators are far superior to the national and EU atmospheric emission standards. Ash residues can be used in greening or construction.

- High security

By using the Internet of Things technology, 24-hour remote monitoring, remote diagnosis, and remote control of the operation and maintenance center can be realized. A fault occurs in 6 hours and 24 hours in a failure.

- Wide range

Low front-end sorting requirements, no need for pretreatment such as drying, moisture content ≤ 60% low-calorie organic solid waste, mixed organic solid waste can be directly treated, effectively saving operating costs.

- Flexible planning

The system occupies a small area, sealed design, clean and odorless, modular combination can be activated in accordance with the difference in the amount of inbound garbage every day, to avoid the cost of the integrated equipment 24h full-load operation, and at the same time, can reduce Investment risks, easy site selection, and batch construction.

■ Completely solve the problems for traditional equipment

- Solve the problem that the traditional incinerator has a horizontal structure, covers a large area and cannot be moved. However, our equipment adopts an integrated vertical structure, which saves surface space and is easy to move.

- Solve the problem that bag dust can not handle high temperature and high humidity smoke.

- Solve the problem of hazardous waste treatment of waste activated carbon after activated carbon adsorption.

- Solve the problem of high initial investment costs and high follow-up operating costs.

- Solve the problem that traditional incineration must deal with dioxins at high temperatures, the decomposition of dioxins in the pipeline due to the temperature can not be reduced rapidly lead to secondary synthesis problems.

- Solve the problem of traditional water recycling, but the secondary emissions can not be handled.
