DC Generator for Communication - Telecommunication - Nepal - Kathmandu - energyNP.com

DC Generator for Communication (Telecommunication)






* Technical Parameters



 Model
6-100
12-200
 Engine  Engine Type
Hongda GX390
/B&S 25T2
B&S 3854
 Power (hp)
13 / 13.5
21
 Cooling Method
Forced Air Cooling
Forced Air Cooling
 Fuel Type
93# Pure Gasoline and about
 Displacement (Square Centimetre)
389 / 420
627
 Oil Alarm System
Yes
Yes
 Starting Mode
Manual
Electric Start
 Oil Consumption(g/kw.hr)
+218
+220
 Oil Tank Capacity (L)
15
25
 Generator  Output Voltage (V)  Rated
48
48
 Floating
53.5
53.5
 Equalizing
56.4
56.4
 Output Electric Current (A)  Rated
110
220
 Floating
105
210
 Equalizing
100
200
 Output DC Power
DC6kW
   DC12kW;
   AC230/6kW;
   AC400/12kW
 Stable Voltage Precision
Better than \1%
Better than \1%
 Load Balance
Better than \5%
Better than \5%
 Pulse Amplitude of Step Load Change
Better than \5%
Better than \5%
 Soft Starting Time
3S~10S
3S~10S
 Weighted Noise Voltage (300~400Hz)
<2mV
<2mV
 P-P Noise Value Voltage (0~20MHz)
<200mV
<200mV

 Wide Band

 Noise Value Voltage

 3.4~150kHz
<50mV
<50mV
 0.15~30MHz
<20mV
<20mV
 Discrete

 Noise Value Voltage

 3.4~150kHz
<5mV
<5mV
 150~200kHz
<3mV
<3mV
 200~500kHz
<2mV
<2mV
 0.5~30MHz
<1mV
<1mV
 Whole

 Machine

 Noise Level@7m(dBA)
72
72
 L〜W〜H (mm)
654〜540〜616
1102〜712〜957
 Net Weight (kg)
62
158

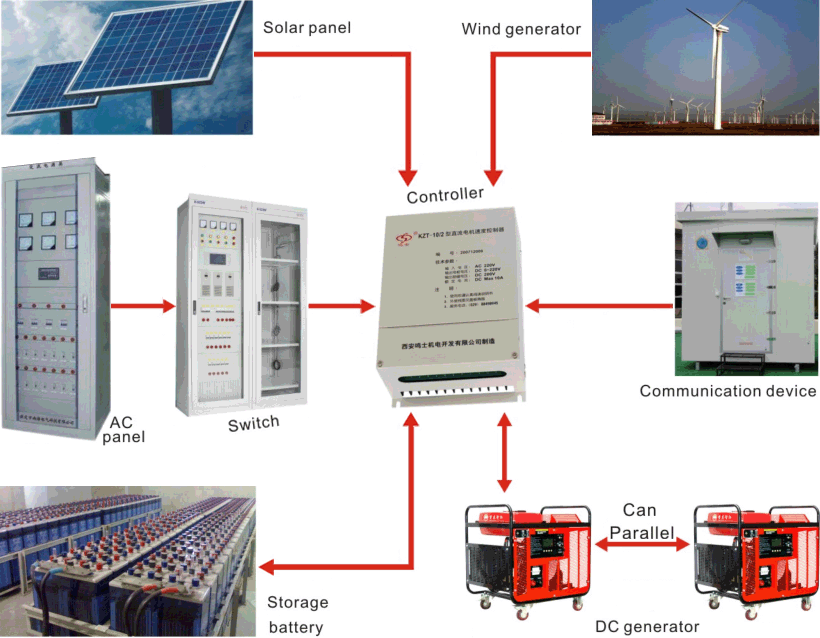

* Application Program of DC Generator for Telecommunication





DC Generator for Communication - Telecommunication - Nepal - Kathmandu - energyNP.com





* Features



- Imported engine, reliable performance and low failure rate.

- Small size and light weight which is about only 50% of traditional generator of the same power. It is more convenient for energency rescue.

- Remarkable energy-saving and emission-reducing effects. It saves about 30% fuel than traditional generator when the latter is connected to external power supply.

- Modular designed, safely and reliable. It has output protection functions including over-voltage, short circuit, current limit, reversal of storage battery; overheat of power module and low oil alarm etc.

- It can either work independently or work with several more to supply power to communication equipment.

- Convenient operation and maintenance. Output is directly connected to storage battery of communication equipment; and local human machine interaction operation can be realized through LED display and keyboard operation. Total generation time and generated energy can be recorded. Besides, the system has 20 latest alarm records.

- Highly inteligent. Remote control monitoring system can be installed in unwatched base station (especially new energy base station such as wind power station and light energy station), and the engine can be automatically turned on according to utility power outage and storage battery voltage, and be turned off inaccordance with restoration of utility power, storage battery voltage and charging current.
