Off-Grid Solar Power Systemm Solution

1. Wind-Solar Hybrid System

Wind-solar hybrid system is a kind of economic and practical power supply system by use of abundant wind and solar power locally under the circumstance of far from the grid, no electricity, sparse population, low loads and inconvenient traffic.

Technical configuration :

Item	Specification	Quantity
Installed gross capacity	20kWp
Solar module	250Wp	60pcs
Mounting system	Hot galvanizing	1set
Wind turbine	1kWp	5sets
Wind turbine mounting bracket	Hot galvanizing	5sets
Controller	20kW,40A,12V24V	1set
Inverter	20kW	1pc
Battery	250Ah/12V	40pcs

2. Solar Greenhouse System

Solar greenhouse system is a kind of new pattern of modern agriculture evolution combined solar power in the roof of the greenhouse with agricultural production inside the greenhouse. The solar power system is installed in the roof of the greenhouse to generate the electricity, and the modern agriculture crops are planted inside the greenhouse to explore safe and efficient pattern of agriculture production in order to make use of limit sources and space to improve the economic benefit of unit land.

Technical configuration :

Item	Specification	Quantity
Installed gross capacity	20kWp
Solar module	250Wp	80pcs
Mounting system	Hot-galvanizing	1set
Inverter	20kW	1pc
Controller	40A,12V24V	1set
Battery	200Ah/12V	40pcs

3. Solar Pump System

Technical configuration :

Item	Specification	Quantity
Installed gross capacity	5kWp
Solar module	250Wp	8pcs
Mounting system	Hot galvanizing	1set
Inverter	5kW	1pc
Pump	3kW	2sets

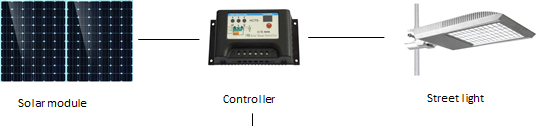

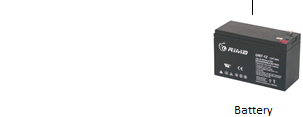

4. Solar Street Light System

New energy for public lighting solutions include street lights, landscape lights, garden lights and other solar lighting products. The function of solar street light system is that the electricity generated from the solar modules will be stored in the battery and it can auto-sense external illumination changes and control the switch intelligently without human operation.Wi traffic.

Technical configuration :

Item	Specification	Quantity
Installed gross capacity	200Wp
Solar module	100Wp	2pcs
Mounting system	Hot galvanizing	1set
Controller	10A/20A,24V	1pc
Battery	100Ah/150Ah/200Ah/250Ah/12V	2sets
Street light	20-100W	1pc

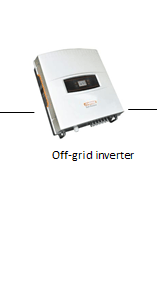

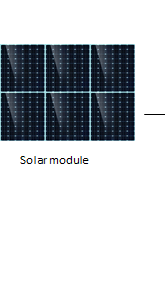

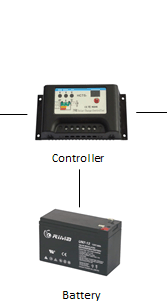

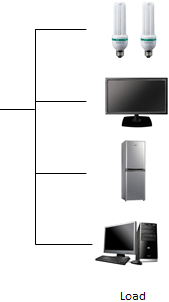

5. No-Electricity Household System

No-electricity household system can solve the problems of residential electricity consumption within the area the grid can not reach.

The system is consisted of solar module, controller, inverter, battery, environment monitoring system and other components. The electricity generated by solar module will charge the battery via intelligent controller, and the battery will provide DC load the direct current via the controller or AC load the active current via the inverter.

Technical configuration :

Item	Specification	Quantity
Installed gross capacity	2kWp
Solar module	250Wp	8pcs
Mounting system	Hot galvanizing	1set
Controller	40A,48V	1pc
Battery	100Ah/150Ah/200Ah/250Ah,12V	2sets
Inverter	2kW	1pc
Control cabinet		1set
Environment monitoring system		1set
