	Compact Solar Water Heater
		1. Low-Pressure Solar Water Heater 2. Low-Pressure Solar Water Heater With Feeding Tank 3. Pressurized Solar Water Heater with Copper Coil 4. Pressurized Solar Water Heater with Heat Pipe 5. Non-Pressure Flat Plate Solar Water Heater 6. Pressurized Flat Plate Solar Water Heater

	Back to product list >>>

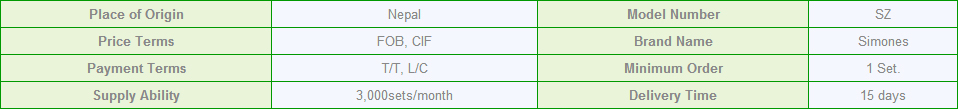

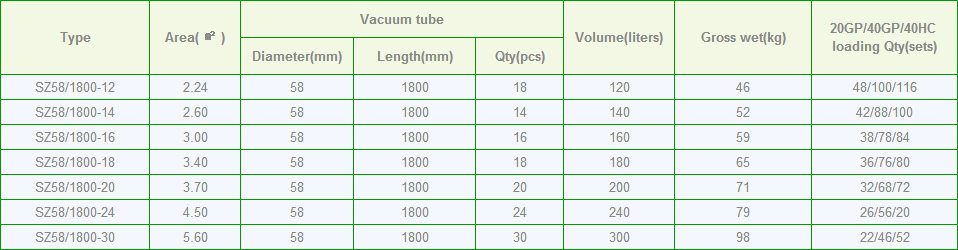

1. Low-Pressure Solar Water Heater

■ This model operates automatically to add water.

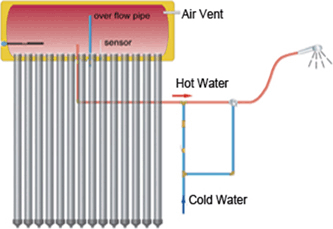

■ Using thermosiphon system- Depending on the different density between hot water and cold water, a water flowing cycle is created in the tubes. Hot water flows antomatically upwards while the cold water flows down. The water in the storage tank will be heated from this nautal circulation.

■ Inner tank：Stainless steel SUS304-0.5mm

■ Vacuum tube：58/1800

■ Outer tank：Painted steel -0.4mm

■ Fame：Coated galvanized steel-1.5mm

■ The material of insulation- Polyurethane

■ Tank diameter：375mm/475mm

■ Thickness of insulation：50mm

■ Collector Angle：45°

Low Pressure Solar Water Heater - Nepal - Kathmandu - energyNP.com

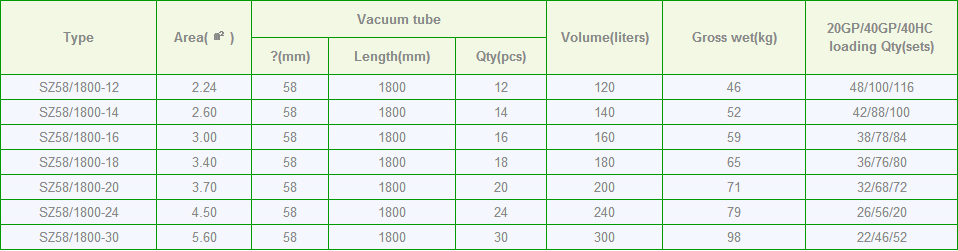

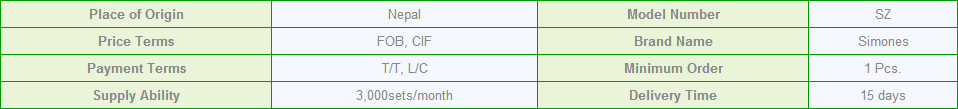

2. Low-Pressure Solar Water Heater With Feeding Tank

■ This model operates automatically to add water.

■ Inner tank：Stainless steel SUS304-0.5mm

■ Vacuum tube：58/1800

■ Outer tank：Painted steel -0.4mm

■ Fame：Coated galvanized steel-1.5mm

■ The material of insulation- Polyurethane

■ Tank diameter：375mm/475mm

■ Thickness of insulation：50mm

Low Pressure Solar Water Heater With Feeding Tank - Nepal - Kathmandu - energyNP.com

■ Instant heat exchange; plentiful warm water for use

■ Fresh water quality

■ Works with pressure

■ Output water temperature is stable, so it is very comfortable and safe to use.

■ Hot & cold water flow is separated.

■ Copper coil is tested and does not break; high grade materials are used

■ Works intelligently and reliable.

■ Tank diameter: 375mm/475mm

■ Thickness of insulation: 50mm

■ Collector Angle: 45°

■ Inner tank: SUS304-0.6mm

■ Outer tank: Painted Steel-0.5mm

■ Vacuum tube: Φ58/1800

■ Copper coil: Φ12mm, thickness 0.8mm

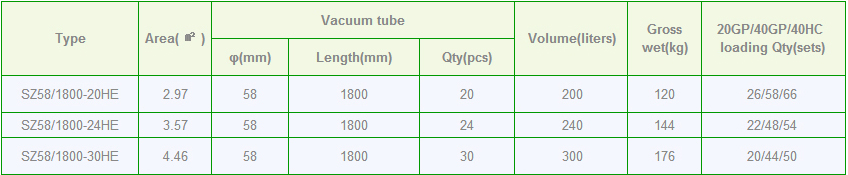

3. Pressurized Solar Water Heater with Copper Coil

Pressurized Solar Water Heater with Copper Coil - Nepal - Kathmandu - energyNP.com

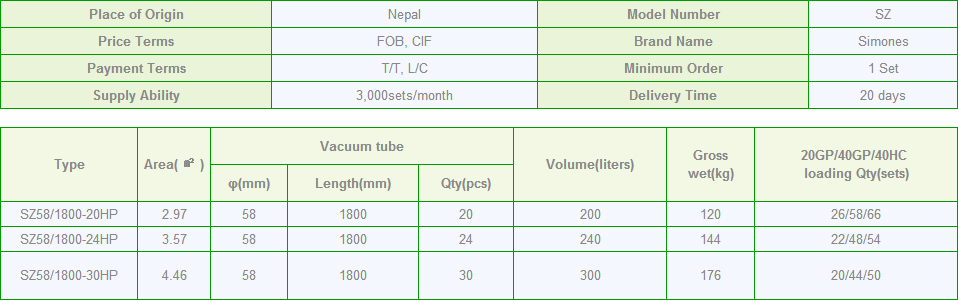

4. Pressurized Solar Water Heater with Heat Pipe

Pressurized Solar Water Heater with Heat Pipe - Nepal - Kathmandu - energyNP.com

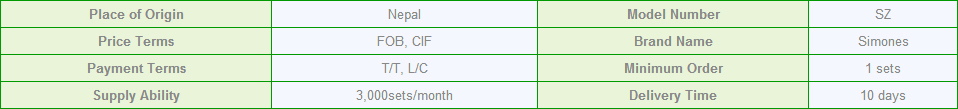

5. Non-Pressure Flat Plate Solar Water Heater

This new Flat Plate Solar Water Heater thermosyphon system is a solar compact system comprising an aluminium high power collector with an integrated 100 (200 / 300) liters tank. For easy installation, the frame is simply unfolded. However, the product is also impressive due to its aesthetic design and reliable performance: Due to improved layering of the tank, the FPS 1000 series product yield is better in comparison with other thermosyphon systems. The tank can also be fitted with an optional heating rod for fast hot water supply.

■ Modular system is easy for transport and installation

■ Tank in 100,200 and 300 liter version with optimized heat insulation

■ Woven toughened solar safety glass

■ Qualified and recyclable materials ensure a long service life and high environmental compatibility

■ Maximum heat transfer between the absorber sheet and the header tubes thanks to optimized brazing or laser welding technology

■ Statically tested mounting system can be installed on flat roofs

Non Pressure Flat Plate Solar Water Heater - Nepal - Kathmandu - energyNP.com

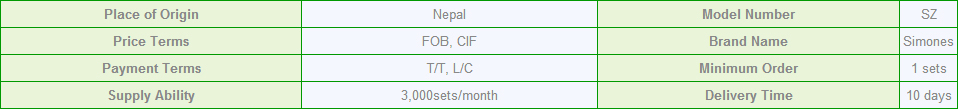

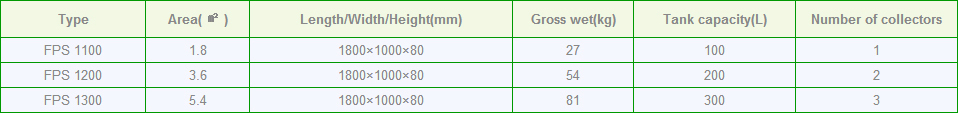

6. Pressurized Flat Plate Solar Water Heater

This new Flat Plate Solar Water Heater thermosyphon system is a solar compact system comprising an aluminium high power collector with an integrated 100 (200/300) liters tank. For easy installation, the frame is simply unfolded. However, the product is also impressive due to its aesthetic design and reliable performance: Due to improved layering of the tank, the FPS 1000 series product yield is better in comparison with other thermosyphon systems. The tank can also be fitted with an optional heating rod for fast hot water supply.
